Unit: Installing furnishing products

Supporting: LMFFM3006B Install furnishing products

Section 1: Fasteners and sealants

Fasteners for stud walls


Image for slide 1
Audio for slide 1 (mp3 |6|KB)

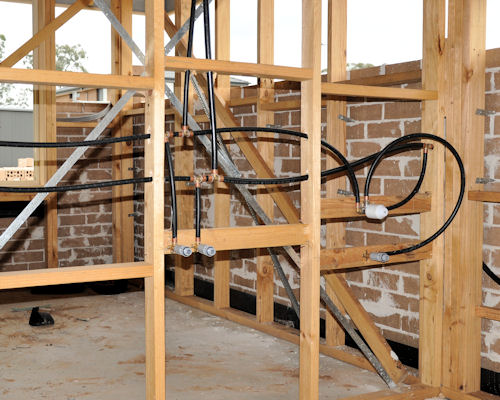

Most new homes have a brick veneer wall structure, with an external skin of brickwork and an internal wall frame.

The wall frames are often called stud walls, because the main structural members are the vertical studs.

For more details on the structural aspects of these walls, see the unit: Installation requirements.

hearing icon
Image for slide 2
Audio for slide 2 (mp3 |6|KB)

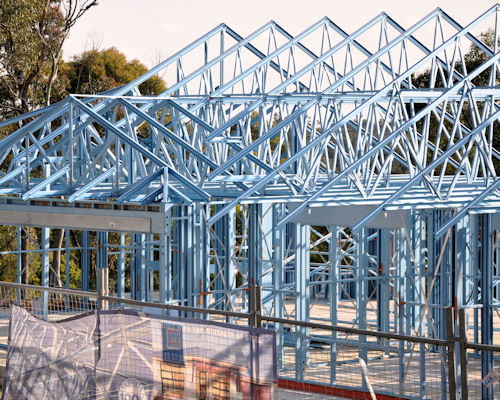

Stud walls are generally made of timber, although sometimes steel is used, particularly in localities that are known to have high termite activity.

In the kitchen it is common to have plasterboard sheeting (such as 'Gyprock') fixed to the wall frame.

In the bathroom, the sheeting is more often fibre cement (such as 'Villaboard'), which is water resistant and easy to tile.

hearing icon
Image for slide 3
Audio for slide 3 (mp3 |6|KB)

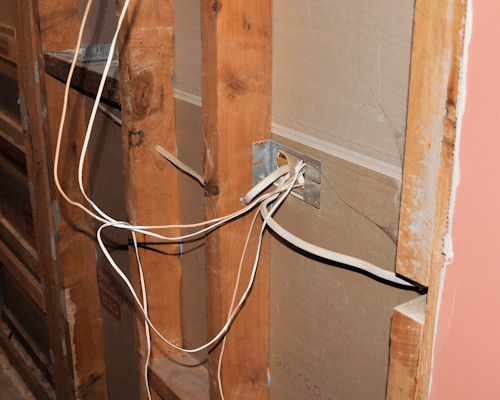

Most fixings for stud walls are designed to go into the studs themselves.

However, for lighter loads, it is sometimes possible to use fasteners that fix to the internal wall lining in between the studs - that is, in the wall cavity.

Set out below are the main types of fasteners used for stud walls.

hearing icon
Image for slide 4
Audio for slide 4 (mp3 |6|KB)

Nails

Nails are best for replacing skirtings and architraves. They're also suitable for fixing timber blocks to a timber floor or the base of a wall. In general, you shouldn't use nails for fixing cabinets or other units that need to be levelled and plumbed.

hearing icon
Image for slide 5
Audio for slide 5 (mp3 |6|KB)

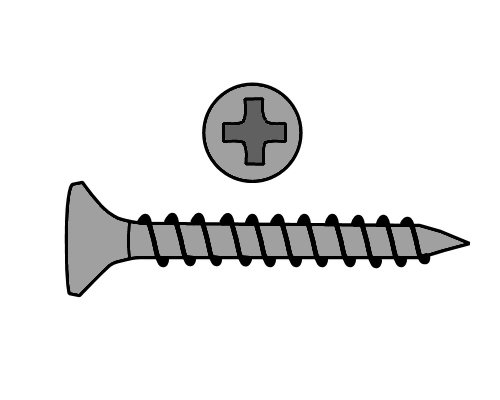

Self-drilling timber screws

The most common screws used by installers are 'posi-drive' or Phillips-head timber screws. These are self-drilling screws, driven with a Phillips bit on a variable-speed drill. One example is the 'chipboard screw', which is also used in assembling particleboard cabinets.

hearing icon
Image for slide 6
Audio for slide 6 (mp3 |6|KB)

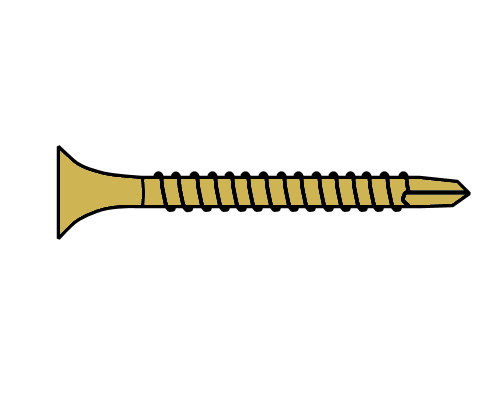

Self-drilling metal screws

In buildings that have steel wall frames, metal screws need to be used. Again, these self-drilling screws are generally driven by a variable speed drill. However, depending on the gauge of the screw, they may have a Phillips head or a hex head.

hearing icon
Image for slide 7
Audio for slide 7 (mp3 |6|KB)

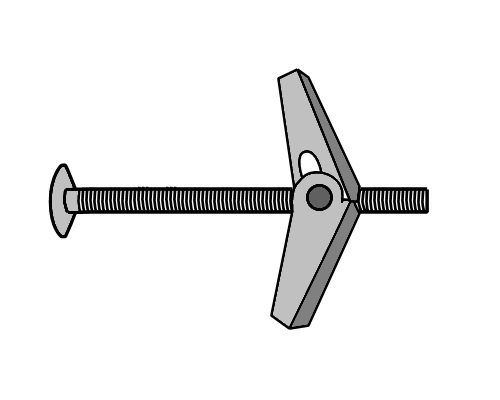

Toggle bolt

Toggle bolts are cavity fasteners - that is, they fix to the plasterboard or other internal wall lining material in the cavity between the studs. When the bolt is pushed through the hole, the toggle springs open and provides a restraint for the bolt as it is tightened. They are only suitable for light loads.

hearing icon


Learning activity

Audio 8 (mp3 |6|KB)

Like the masonry fasteners we discussed in the previous lesson, you have probably used some of these items on-site but not others. Again, there are various patented designs, such as 'Interset' cavity fasteners and 'Rawlnut' multi-purpose fasteners.

Choose a fastener that you either work with now or would like to know more about. Again, if you're not very familiar with the fastener, try to use it in a couple of jobs to see how it works.

When you've finished your research, write down the following details:

  • Brand name of fastener

  • General description (i.e. cavity fastener, timber fastener, steel fastener)

  • Advantages (including the applications for which it is most suitable)

  • Disadvantages (including situations where you would not use it).

Share your findings with your trainer and other learners in your group. You may take digital photos of the fastener, both loose and in a completed job, to include with your answers.
