Unit: Installing furnishing products

Supporting: LMFFM3006B Install furnishing products

Section 3: Installing appliances


Your trainer may ask you to complete this assignment as one of the assessment requirements for this unit. For more information about the assessment process and advice on what to do if you need help with your reading and writing, click on the link below.

Assessment requirements


Assignment for Section 3: Installing appliances

Question 1

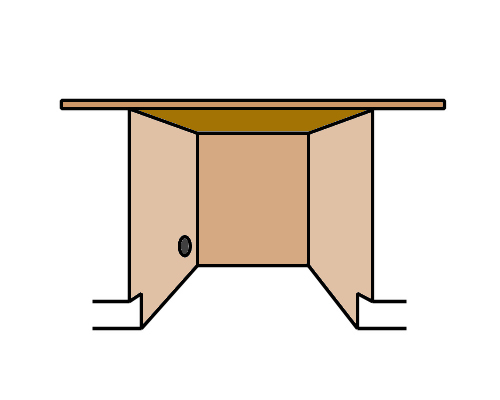

You have been asked to build in a space for a dishwasher between the sink cabinet and the cutlery drawers. The dishwasher dimensions are:

    Width: 590 mm

    Height: 850 mm (minimum height, with adjustable legs screwed in)

(a) You decide to allow a clearance of 5 mm on each side of the dishwasher.

What will the total width of the opening be for the dishwasher?

(b) The floor is currently bare concrete, but the client has told you that it will be tiled later with tiles that are 12 mm thick. They will cover the entire kitchen floor area, including the space provided for the dishwasher. You will need to allow 12 mm for the tiles plus 3 mm for the glue thickness. Your bench top height is 920 mm above the concrete floor and its thickness is 35 mm.

How much clearance will there be between the top of the dishwasher and the underside of the bench top after the tiles are laid?


Question 2

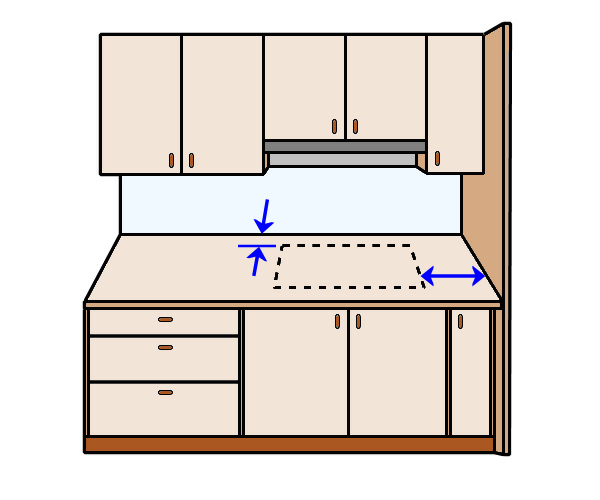

You are about to install a cooktop. The splashback behind the cooktop is glass and the vertical panel to the right is particleboard with a timber veneer, as shown in the 3D drawing below.

Once it's installed, the clearances to the back and right hand side of the cooktop will be the minimum allowed under AS 4386.

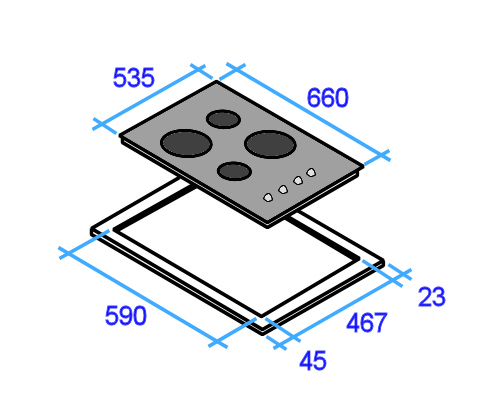

The diagram at left shows the cooktop dimensions and cut-out dimensions. The white border around the cut-out represents the cooktop overlap where it sits on the bench top.

(a) How far in from the splashback will you draw your rear cut-out line?

(b) How far in from the right hand panel will you draw the right hand cut-out line?




Doc (267 KB) Installing appliances assignment template

Click on the link above to go to the Word document you will need to complete. You should fill in your answers on-screen and then either:

  • print out a hard copy to send to your trainer by post

  • save the file electronically to submit to your trainer as an email attachment.
