Unit: Fabricating cabinets

Supporting: LMFKB3005A Fabricate cabinets for the built-in environment

Section 3: Assembling the cabinets

Image for slide 1
Audio for slide 1 (mp3 |6|KB)

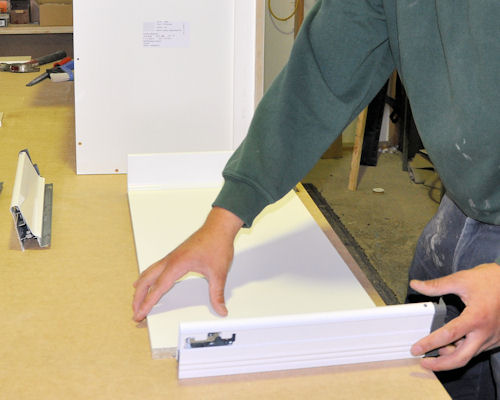

It's possible to make drawers from manufactured board off-cuts.

However most workplaces use patented systems developed by specialist manufacturers.

The final choice will depend on the style of the cabinet, the client's taste and, of course, the budget for the project.

hearing icon
Image for slide 2
Audio for slide 2 (mp3 |6|KB)

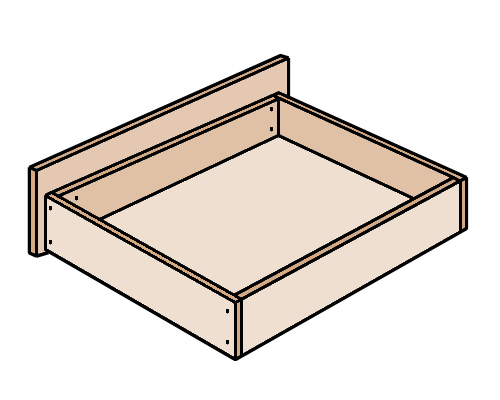

The simplest example of a drawer comprises an open box with a front, back and sides made of 16 mm white particleboard and an MDF base.

A separate drawer front is fitted to match the cabinet doors.

There is generally 12-13 mm of free space between the inside of the carcase and the outside of the drawer sides to allow for the runners.

hearing icon
Image for slide 3
Audio for slide 3 (mp3 |6|KB)

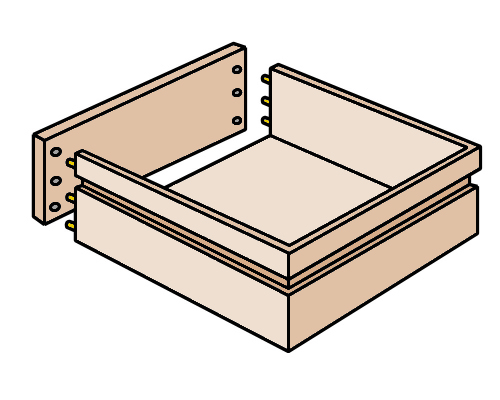

Pre-finished drawers

Vinyl wrapped drawers are made from particleboard covered in vinyl. They are grooved to take the drawer bottom, and sometimes also for the drawer slides.

Mitres are pre-cut to allow for quick assembly.

hearing icon
Image for slide 4
Audio for slide 4 (mp3 |6|KB)

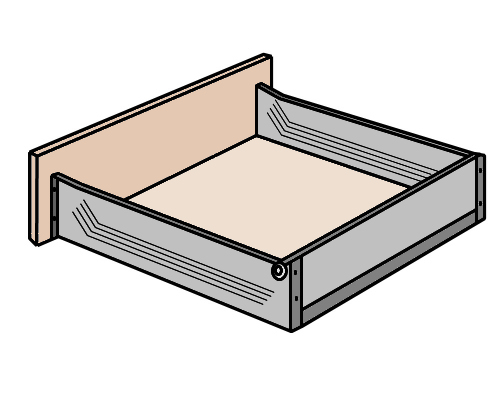

Metal drawers come in a range of patented designs.

The drawer slides are generally incorporated into the design, and enable the drawer to be assembled and adjusted easily.

hearing icon
Image for slide 5
Audio for slide 5 (mp3 |6|KB)

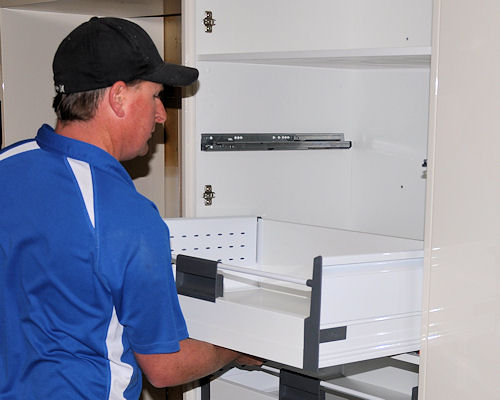

Adjusting drawer fronts and runners

You'll find more details on drawer fronts and runners in the lesson 'Drawers' from the unit Adjusting cabinets on-site.

This includes simple installation and adjustment procedures.

hearing icon


Learning activity

Audio 6 (mp3 |6|KB)

What types of drawers do you use?

What are the advantages (if any) of using these types of drawers? Briefly describe the assembly process.

Share your answers with your trainer and other learners in your group.

You may wish to take digital photos to include with your answers.
