Unit: Checking fit of cabinets

Supporting: LMFKB3003A Check and measure fit of cabinets

Section 2: Using measuring devices


Assignment

Your trainer may ask you to complete this assignment as one of the assessment requirements for this unit. For more information about the assessment process and advice on what to do if you need help with your reading and writing, click on the link below.

Assessment requirements

Assignment for Section 2: Using measuring devices

Answer the following questions.

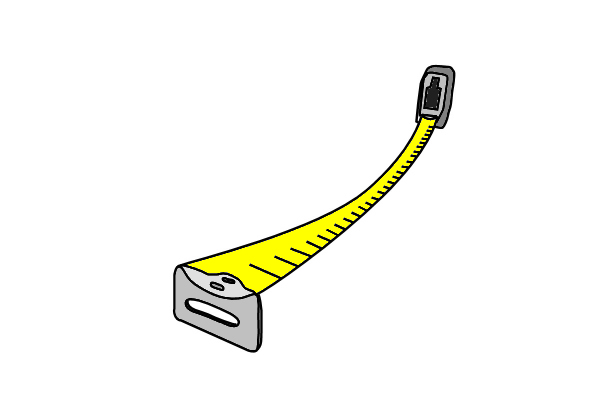

  1. You need to measure the width of a room with your tape measure. So you ask your offsider to hold the end of the tape against one wall while you stretch out the tape to the opposite wall. However, you notice that there is a sag in the tape, because you're both working at waist height and it is a long room.

    a)   What effect will the sag in the tape have on the measurement?

    b)   How can you overcome this problem?

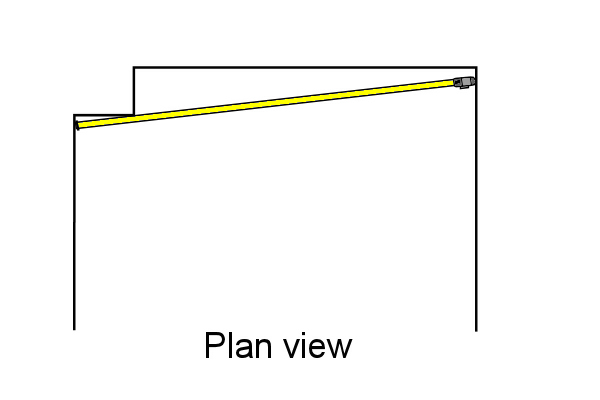

  2. At one end of the room there is a boxed-in section which houses a waste pipe. You need to measure the full length of the room, so your offsider holds the tape beside the boxed-in section while you stretch it across to the far corner. But when you look back you can see that the tape is not running at right angles to the two walls.

    a)   What effect will this angle have on the measurement?

    b)   State two different ways you could overcome this problem by repositioning the tape. (Hint: one way will occur at your end, and the other way will occur at your off-sider's end.)


  3. You have been given an old spirit level that looks a bit knocked around. You place it on the floor and find that the bubble is exactly in the middle of the vial, indicating that the floor is dead level. But when you turn the level back-to-front and check it again, the bubble is now off centre.

    a)   Is this level giving you accurate readings?

    b)   What should you do with the level?


  4. What is the commonsense safety precaution to keep in mind when working with a laser level? (Hint: it concerns your eyes.)


Doc (92 KB) Using measuring devices template

Click on the link above to go to the Word document you will need to complete. You should fill in your answers on-screen and then either:

  • print out a hard copy to send to your trainer by post

  • save the file electronically to submit to your trainer as an email attachment.
