Unit: Installing cabinets on-site

Supporting: LMFKB3006A Install fitted cabinets and components

Section 1: Fasteners and sealants

Durability of fasteners


Image for slide 1
Audio for slide 1 (mp3 |6|KB)

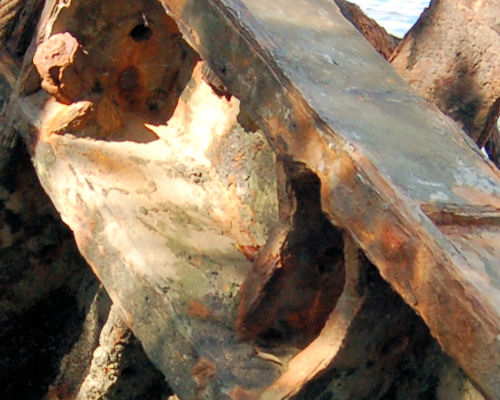

Corrosion is the process of a metal rusting away, or breaking down into the natural materials it is made from.

There are many corrosive agents, including air, water, salt and acids.

The higher the level of exposure to these agents, the faster the corrosion will be.

hearing icon
Image for slide 2
Audio for slide 2 (mp3 |6|KB)

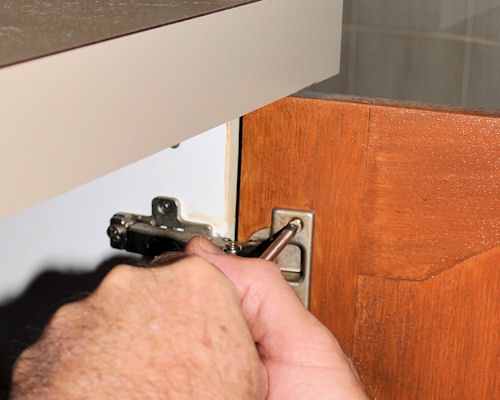

Although the fasteners used in kitchen and bathroom installations are generally shielded from the outside elements, there are still times when their location may put them into direct contact with water or a high humidity atmosphere.

In these instances, you need to make sure that the fasteners will be durable enough to resist corrosion.

hearing icon
Image for slide 3
Audio for slide 3 (mp3 |6|KB)

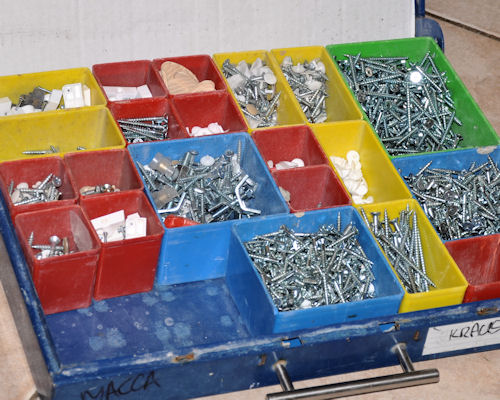

There's a wide range of coatings available for fasteners, providing varying degrees of protection to rust.

There are also particular metals, such as stainless steel, that are very durable in their own right.

In the end, you need to strike a balance between the cost of the fastener and its ability to do the job expected of it over the lifetime of the installation.

Below are the main finishes you're likely to use.

hearing icon
Image for slide 4
Audio for slide 4 (mp3 |6|KB)

Hot dipped galvanising

Galvanising is the process of coating a steel fastener with zinc by passing it through a bath of molten zinc. The finished surface has a dull grey look with a 'spangle' pattern. Hot dipped gal fasteners are very durable, and are used in areas of high exposure to corrosive agents, or when long term reliability is critical.

hearing icon
Image for slide 5
Audio for slide 5 (mp3 |6|KB)

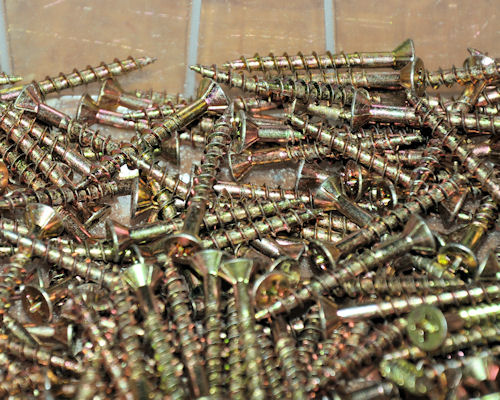

Zinc plating

Zinc plating is a cheaper process than hot dipped galvanising, but the coating is much thinner. The steel is immersed in a zinc salt solution and an electrical current is applied through a process called 'electrolysis'. Zinc plated fasteners are generally bright silver or gold in colour, and are suitable for most internal applications.

hearing icon
Image for slide 6
Audio for slide 6 (mp3 |6|KB)

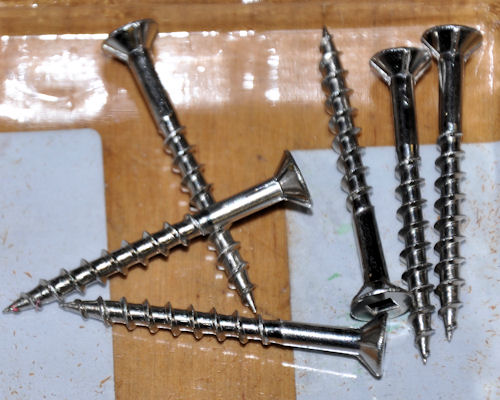

Stainless steel

Stainless steel fasteners don't require a coating at all, because the steel alloy is already extremely resistant to corrosion. They are also much more expensive than most other fasteners. Although they're not normally needed for internal applications, they are used in high exposure conditions, such as around spas and saunas.

hearing icon


Learning activity

Audio 7 (mp3 |6|KB)

Most of the bolts, screws and other fasteners you use at work are probably zinc plated. But there may be times when you need to use hot dipped gal or stainless steel fasteners. You may even use other types of plating from time to time, such as nickel, chrome or molybdenum.

List some examples of fasteners you use at work. Beside each one state the metal (or other material) it's made from as well as its protective coating (if there is one). Try to choose fasteners that have a range of different materials and coatings. Share your answers with your trainer and other learners in your group.
