Unit: Processes in K&B projects

Supporting: LMFKB3001A Identify processes in kitchen and bathroom projects

Section 2: Key stages

The building phase


Image for slide 1
Audio for slide 1 (mp3 |6|KB)

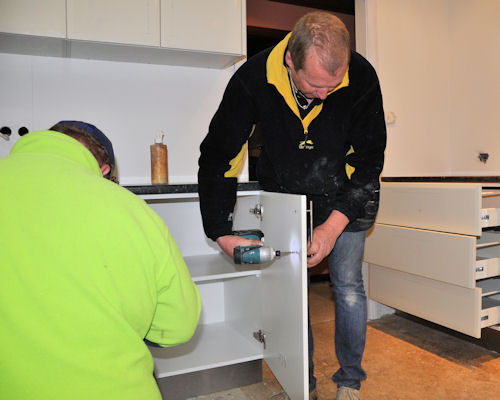

Once the installation phase commences, the work will need to be carefully coordinated to make sure that the different stages are completed in the right sequence and within the set time frames.

You need to monitor the tradespeople closely so that they don't get in each others' way, or have to wait for something else to be completed before they can finish their own work.

hearing icon
Image for slide 2
Audio for slide 2 (mp3 |6|KB)
It's likely that some parts of the project will be carried out in parallel, especially when the activities can be done at different locations.

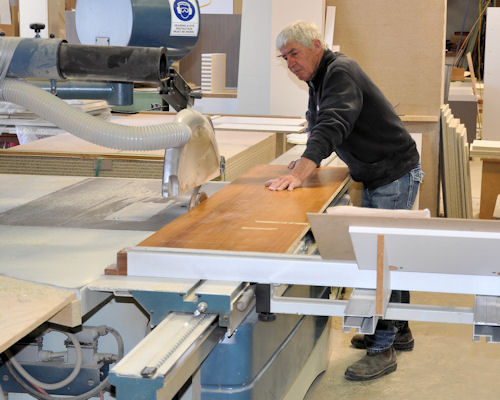

For example, you may have the cabinets being made at the workshop while the demolition work is underway on-site.

hearing icon
Image for slide 3
Audio for slide 3 (mp3 |6|KB)

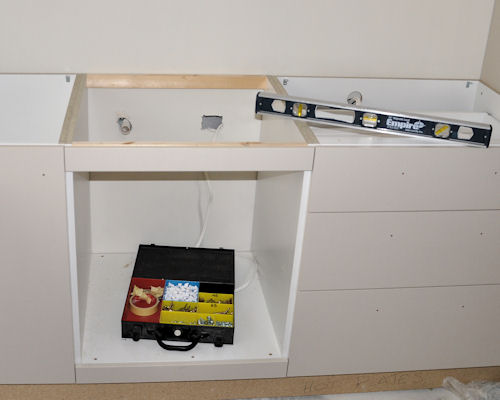

Sequence of work for a kitchen renovation

The usual sequence of on-site work for a kitchen renovation is as follows:

  • disconnect all services, such as power, water and gas

  • remove old cabinets, appliances and fittings

  • relocate windows and walls, if necessary

  • install basic plumbing and electrics

  • install new flooring, if necessary

  • install new cabinets, bench tops and tiling

  • install appliances and lighting

  • install plumbing fixtures

  • seal and paint

  • carry out a final inspection.
hearing icon
Image for slide 4
Audio for slide 4 (mp3 |6|KB)

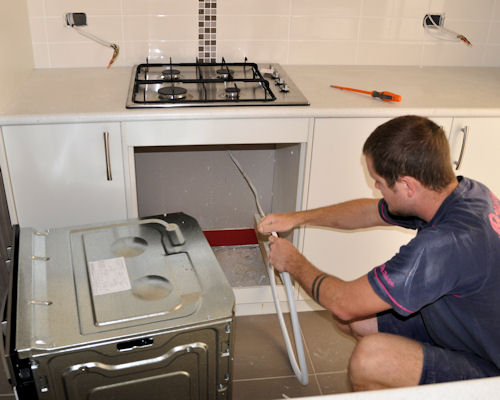

New projects

For new projects, the process will be much the same as above, except that no demolition or removal of old units will be required. This also means that the services don't need to be disconnected, because they won't yet have been installed.

hearing icon


Learning activity

Audio 5 (mp3 |6|KB)

Let's say you've been asked to supervise the installation of a bathroom in a new project home. The subfloor is an on-ground concrete slab and the timber-framed walls have already been sheeted with Villaboard. What would your sequence of work be for the rest of the job?

List the activities and trades in their correct sequence. You can use the kitchen renovation sequence shown above as a guide.

Write down your answer and share it with your trainer and other learners in your group.
