Unit: Fabricating cabinets

Supporting: LMFKB3005A Fabricate cabinets for the built-in environment

Section 3: Assembling the cabinets

Joints and fasteners

Image for slide 1
Audio for slide 1 (mp3 |6|KB)

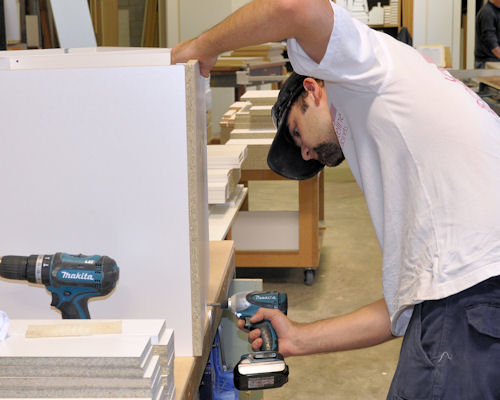

The joints and fasteners you use to assemble carcases will depend on the materials involved and the design of the cabinets.

These days most of the traditional joints used in cabinetmaking have given way to simple butt joints fixed with screws or nails.

This is because the streamlined designs of modern cabinets allow the fastener heads to be hidden or covered with plastic caps.

hearing icon
Image for slide 2
Audio for slide 2 (mp3 |6|KB)

Joints

The butt joint is by far the most common joint used in carcases made from manufactured boards.

It simply involves butting the edge of one panel up against the face of another and fixing them together.

Variations on the standard butt joint include the rebated butt joint and the mitre joint.

hearing icon
Image for slide 3
Audio for slide 3 (mp3 |6|KB)

Conventional fasteners

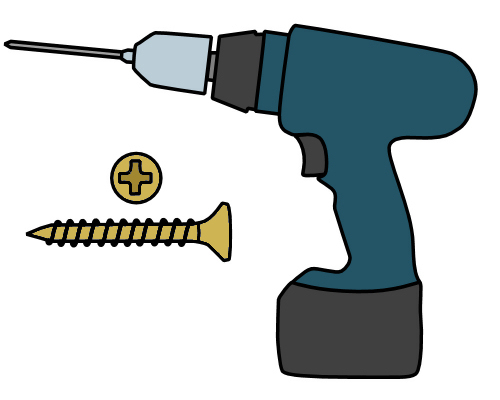

Chipboard screws can be used with most types of manufactured boards, but are designed particularly for particleboard.

They differ from normal wood screws in having a coarser thread and no taper in the shank.

In the workshop you're likely to insert them using an air or battery powered variable-speed drill.

hearing icon
Image for slide 4
Audio for slide 4 (mp3 |6|KB)

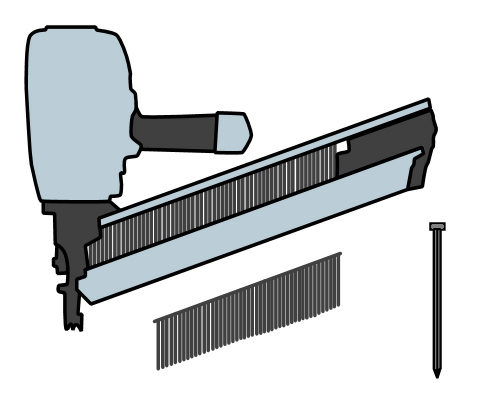

Nails are sometimes used in carcase construction, but they don't have the same holding power as a screw.

To improve their performance they are often tipped with glue.

They are generally fired into place with a pneumatic nail gun.

hearing icon
Image for slide 5
Audio for slide 5 (mp3 |6|KB)

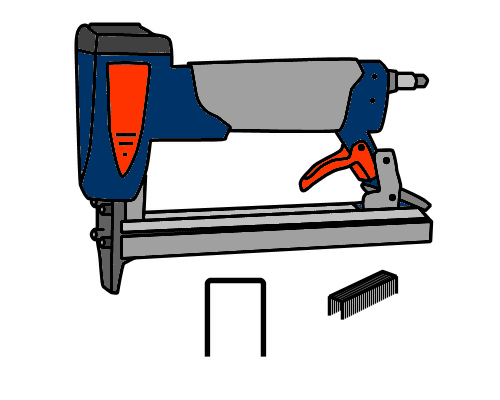

Staples are inserted with a staple gun.

They have reasonable holding power when driven into the face of a board, but don't hold well in the edge.

Again, their performance is improved if they are coated with an adhesive.

hearing icon
Image for slide 6
Audio for slide 6 (mp3 |6|KB)

Knock-down fittings

There are lots of different knockdown fittings on the market, many of which have patented designs.

They can be divided into three main groups.

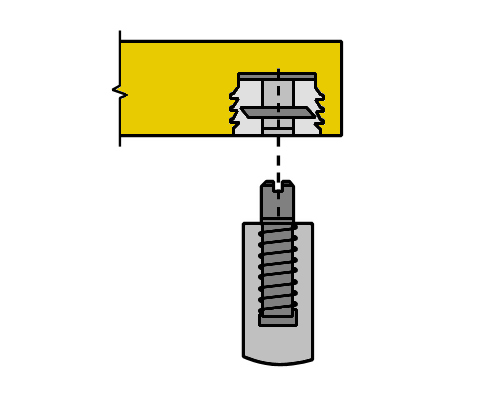

Quick assembly fittings generally use some form of press-stud action.

They often consist of an insert fixed into one component and metal dowel drilled into the other.

hearing icon
Image for slide 7
Audio for slide 7 (mp3 |6|KB)

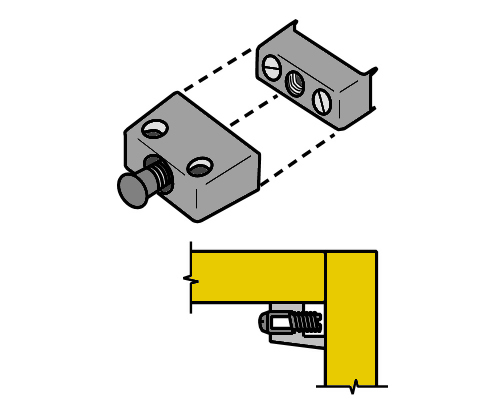

Surface fittings fix directly to the surface of the component.

They are made up of two parts and are held together by a locking, screwing or wedging action.

hearing icon
Image for slide 8
Audio for slide 8 (mp3 |6|KB)
Flush fittings are many and varied.

The elements are fixed into pre-machined holes or rebates. This example shows a dowel and cam fitting.

hearing icon
Image for slide 9
Audio for slide 9 (mp3 |6|KB)

System 32 construction

Knock-down fittings and the System 32 method of construction go hand-in-hand.

System 32 was developed in Europe to provide an efficient form of assembly for manufactured boards.

Its main characteristic is the rows of 5 mm holes drilled into the internal faces of all vertical panels - all spaced at 32 mm centres.

The holes are designed to house the hardware items used in the construction of the unit, including drawer runners, catches, hinges and adjustable shelf supports.

hearing icon


Learning activity

Audio 10 (mp3 |6|KB)

You may use System 32 components at your workshop in particular cabinets or other units.

Even if you don't, you will have seen them used everywhere in flat-pack furniture products, such as those sold by Ikea.

Try to find at least one example of each of the following System 32 hardware items:

  • shelf supports

  • right angled brackets

  • connecting screws (e.g. with an allen key head)

  • bolt and cam fittings.

Take digital photos of your examples and share them with your trainer and other learners in your group.

If you don't have a camera or mobile phone to take the photos, do a line drawing of each one and label it with the correct name.
