Unit: Installation requirements

Supporting: LMFKB3002A Determine requirements for installation of cabinets

Section 1: Site assessment


Just for fun

Audio for slide 1 (mp3 |6|KB)

Below is a different 3D view of the same kitchen that we looked at in the lesson Reading plans. This time we're looking towards the sink and window.

See if you can fill in the correct answers in the boxes underneath. To find the dimensions of the various items, you'll need to consult the floor plan and the elevation - you can go to them by clicking on the links below.

hearing icon

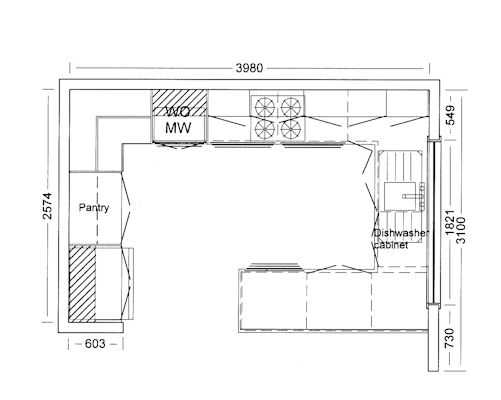

Floor plan

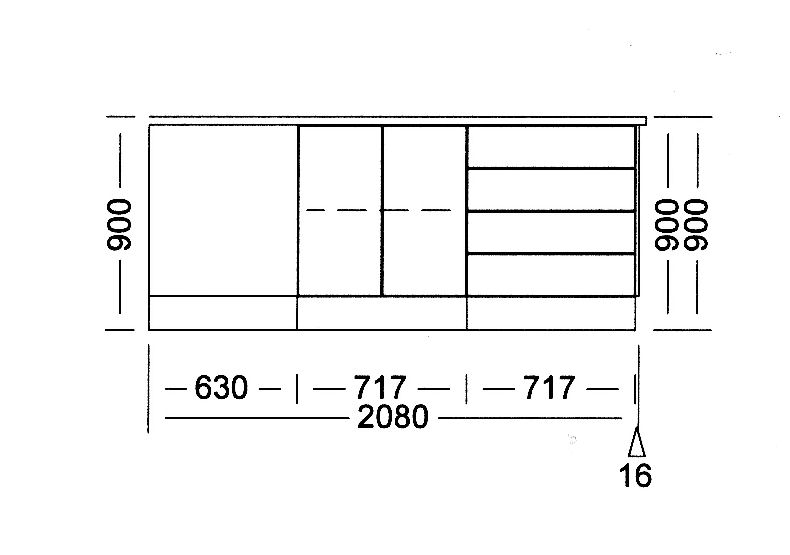

Breakfast bar elevation

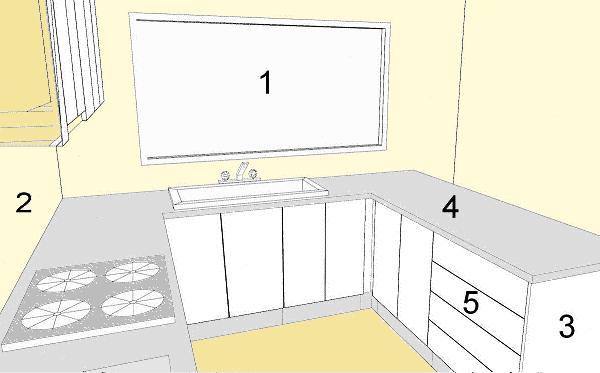

3D drawing of kitchen

Location on drawingMeasurementValue (in mm)
1Width of the window opening1821
2Full length of this wall3980
3Height to the top of the bench900
4Total length of this bench2080
5Width of this cabinet 717
