Unit: Installation requirements

Supporting: LMFKB3002A Determine requirements for installation of cabinets

Section 1: Site assessment

Reading plans


Image for slide 1
Audio for slide 1 (mp3 |6|KB)
The complete set of working drawings for a building is generally called the plans.

These technical drawings present particular two dimensional views of the building.

The main drawings that make up a set of plans are shown below.

hearing icon
Image for slide 2
Audio for slide 2 (mp3 |6|KB)

Plan view

The plan view shows what a structure looks like from above. That is, it gives you a 'bird's eye view'. The most common example of this type of drawing is a floor plan.

However, in a full set of drawings you'll also get a site plan, roof plan, electrical plan and various other specialised plan views.

hearing icon
Image for slide 3
Audio for slide 3 (mp3 |6|KB)

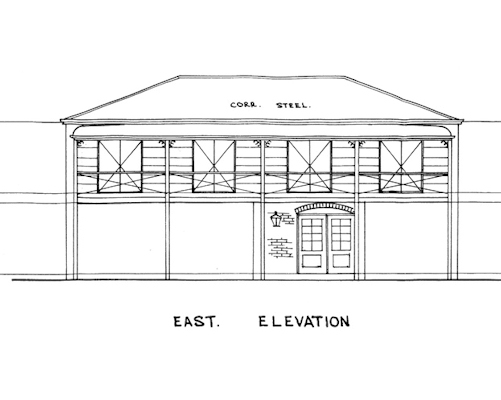

Elevation

An elevation is a side-on view of the structure. There are generally several elevations shown in building drawings, because different sides will have different design features.

The elevations are marked according to the direction that side is facing, such as 'North Elevation' or 'East Elevation'.

hearing icon
Image for slide 4
Audio for slide 4 (mp3 |6|KB)

Section

A cross-sectional drawing is called a section. This may be a cross section through the entire structure, or a particular part of the structure.

hearing icon
Image for slide 5
Audio for slide 5 (mp3 |6|KB)

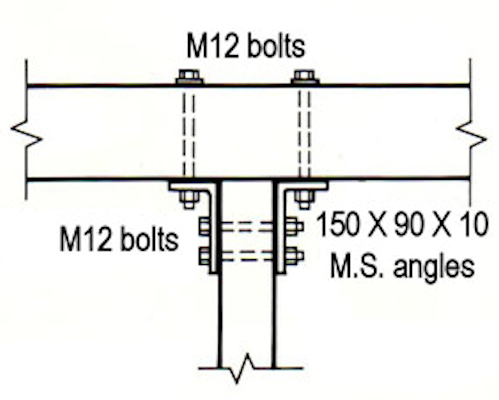

Detail

Detail drawings are close up views that provide construction specifications or extra information on a particular part of an object. They are commonly drawn as a section through the object.

hearing icon


Learning activity

Audio 6 (mp3 |6|KB)

As a kitchen and bathroom specialist, you'll have your own detailed plans showing the cabinets, bench tops and other features included in the installation. These drawings will probably have been generated in a computer aided design (CAD) software program, which will also provide 3D views of the project for the client to see.

Click on the links below to see the plan, elevations and 3D views of a kitchen. Position the windows on your screen so you can look at them side by side. Alternatively, if you only have a small computer screen, you might prefer to print out the images and look at them on paper.

Examine the way particular features appear in each of the different views. For instance, look closely at the cook top in the three views, and then the cabinets above the cook top.

The ability to mentally rotate images and understand what they look like from above, from the side and in 3D is very important in plan reading.

hearing icon

Floor plan

Rear elevation

3D
