Unit: Installation requirements

Supporting: LMFKB3002A Determine requirements for installation of cabinets

Section 1: Site assessment

The assessment process


Image for slide 1
Audio for slide 1 (mp3 |6|KB)

Below are the typical steps involved in organising and carrying out a site assessment.

1. Read through the design brief and project plans

Before you go out to the site, you should familiarise yourself with the details of the project. We covered the basic elements of the design brief and project plans in the following lessons from the unit Processes in kitchen and bathroom projects. You can go back to those lessons by clicking on the following links:

hearing icon

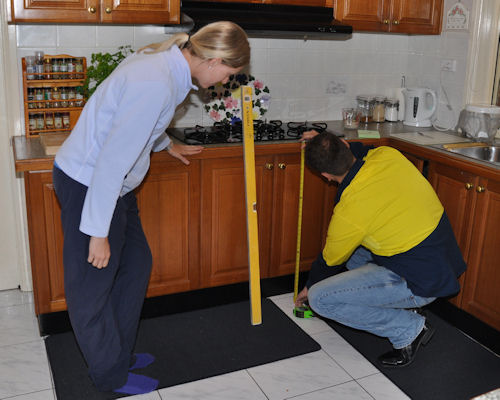

Image for slide 2
Audio for slide 2 (mp3 |6|KB)

2. Arrange to meet the client on-site

It's always best to see the client on the job when you carry out the site assessment. This allows you to go through the design details with them and talk about any issues that might need to be clarified.

hearing icon

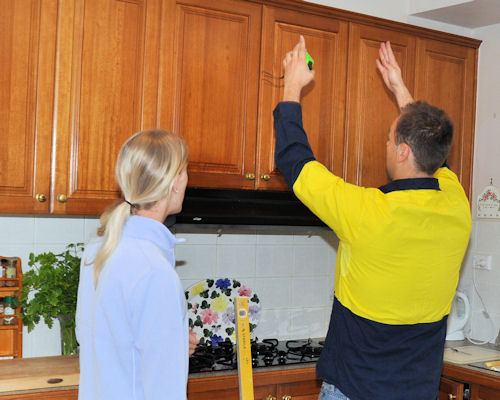

Image for slide 3
Audio for slide 3 (mp3 |6|KB)
It also lets you confirm that the client's vision of the finished project matches your own understanding of the job, and that you're both in agreement on the project schedule.

hearing icon

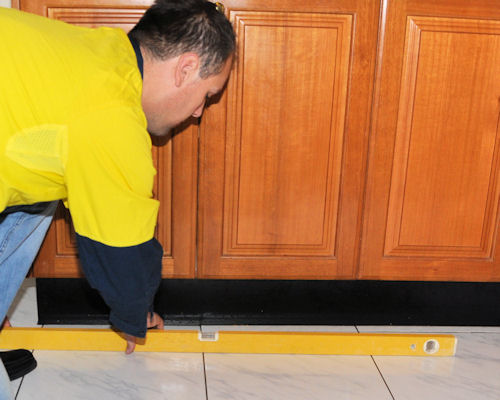

Image for slide 4
Audio for slide 4 (mp3 |6|KB)

3. Carry out the site assessment

There are lots of things that need to be checked and noted when you carry out the actual assessment. These include the structural features of the building, design of the room, access to the work area, and the positions of power outlets and plumbing fittings.

hearing icon

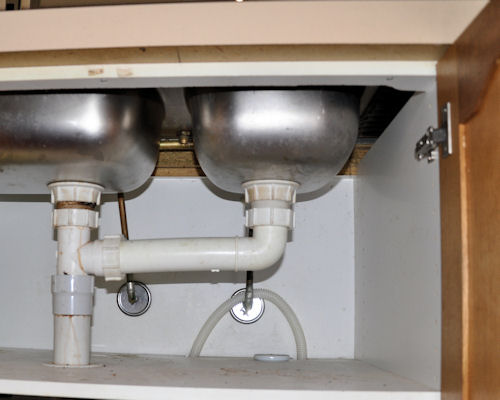

Image for slide 5
Audio for slide 5 (mp3 |6|KB)
While you're there, you should also take exact measurements of the areas where cabinets and bench tops are to be installed.

These include the heights and widths of walls, angles between surfaces, and checks on how level the floor is and how plumb the walls are.

hearing icon

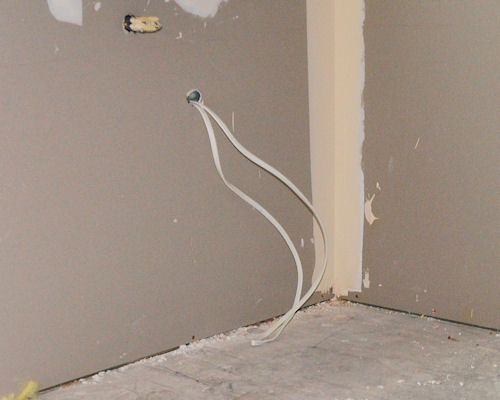

Image for slide 6
Audio for slide 6 (mp3 |6|KB)
In addition to these physical aspects of the project, there are various scheduling details that need to be confirmed.

For example, you need to know when the plumber and electrician will have finished 'roughing in' their pipes and cables in readiness for the cabinets.

hearing icon

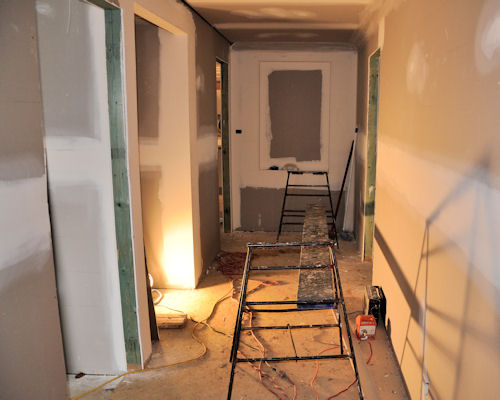

Image for slide 7
Audio for slide 7 (mp3 |6|KB)
You also have to make sure that no other workers will be doing jobs that might get in the way or spoil the quality of your installation work.

It might not be possible to do all of these things in the one visit.

This is particularly the case if your initial site assessment is carried out before other trades complete work that has to be done in advance of your installation.

We'll look in greater detail at some of these aspects of the site assessment throughout the rest of this unit.

hearing icon


Learning activity

Audio 8 (mp3 |6|KB)

There's more to a site assessment than just checking out the kitchen or bathroom you'll be working in. You also have to look to the future and ask:

  • Who else will be working on site when I come back to do the installation?

  • What things might be happening that would affect my work?

See if you can list some of the possible problems if the following work was being carried out when you arrive with the cabinets and your installation team:

  • The front driveway is being excavated for a concrete pour

  • A floor sander will be sanding the dining room, which adjoins the kitchen.

  • The drainer is digging a trench across the property to lay the drainage pipes.

Share your answers with your trainer and other learners in the group.
