Unit: Checking fit of cabinets

Supporting: LMFKB3003A Check and measure fit of cabinets

Section 1: Checking measurements


Assignment

Your trainer may ask you to complete this assignment as one of the assessment requirements for this unit. For more information about the assessment process and advice on what to do if you need help with your reading and writing, click on the link below.

Assessment requirements

Assignment for Section 1: Checking measurements

Task 1

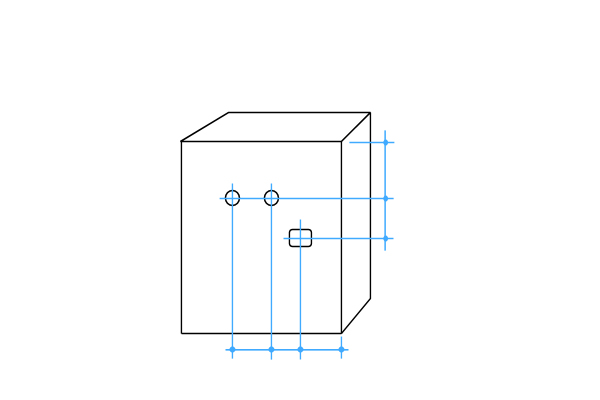

Drawing 1 below shows a wall in a kitchen, with hot and cold water pipes and power for the dishwasher power point. The cabinet installer has measured where the services are in terms of the left hand wall and the finishing line (top) of the cabinet carcases. Drawing 2 shows the layout lines for the cabinets, together with their names and width dimensions. Drawing 3 shows the sink cabinet, viewed from the back.

Work out where the centre points will be for the three holes in the back of the cabinet.

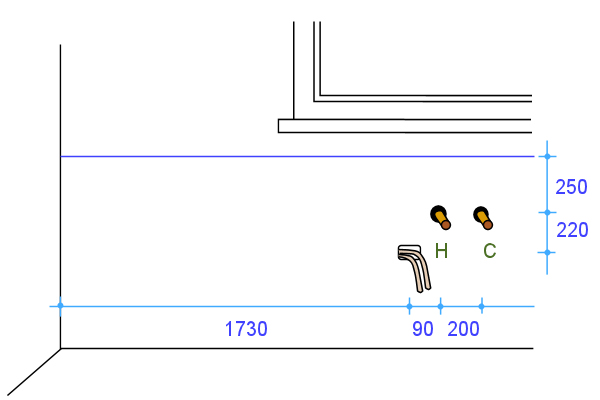

Drawing 1





Drawing 2

Task 2

Assume that you have been asked to check all relevant measurements on one wall of a kitchen or bathroom, in preparation for a new installation. Your task is to produce a freehand sketch of that wall in elevation view, showing all required features and measurements.

The wall you choose to draw up may be in a building where you are installing a kitchen or bathroom. Or it may be in your own home or a friend's home, if you don't have access to a jobsite. Do not show any existing cabinets or other fittings - you should assume that these will be demolished before the new installation begins.

The wall should include the following features as a minimum: a door, a window and water pipes for taps. It may also include other features, such as power outlets, columns, bulkheads and any other architectural features.

You may use symbols and abbreviations in your elevation sketch, but all details must be clear to others who might need to consult the drawing, and all relevant measurements must be easily identifiable.



Doc (140 KB) Checking measurements template

Click on the link above to go to the Word document you will need to complete. You should fill in your answers on-screen and then either:

  • print out a hard copy to send to your trainer by post

  • save the file electronically to submit to your trainer as an email attachment.
