Unit: Checking fit of cabinets

Supporting: LMFKB3003A Check and measure fit of cabinets

Section 1: Checking measurements


Just for fun

Audio 1 (mp3 |6|KB)

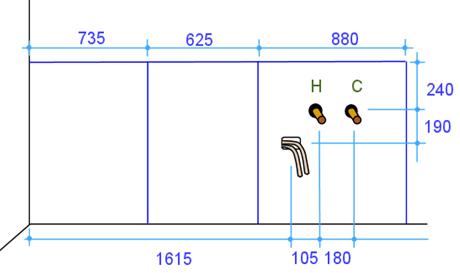

The drawing below shows a wall with hot and cold water pipes and power for a dishwasher. The cabinet installer has marked the layout lines for the cabinets, and measured where the services are in terms of the left hand wall and the finishing line (top) of the cabinet carcases.

Underneath is a drawing of the sink cabinet.

See if you can work out where the centre points will need to go for the three holes in the back. Enter these measurements in the boxes provided.

Note that the cabinet is viewed from the back, so the positions of the holes are in reverse to the way they appear on the wall.

hearing icon
Drawing of the sink cabinet. Measurements for service holes
MeasurementValue in mm
A240
B190
C180
D105
E255
